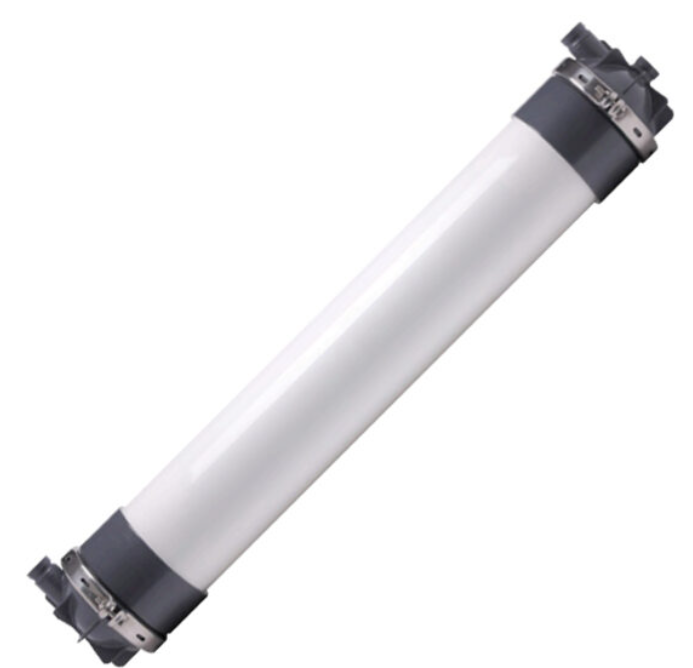

UF Membrane AQU-250A
Ultrafiltration Components Parameters
Model No.
AQU-250PAN
AQU-250PS
AQU-250PP
AQU-250PVDF
Size
Φ250X1713mm
Φ250X1713mm
Φ250X1713mm
Φ250X1713mm
Hollow fiber material
PAN
PS
PP
PVDF
Hollow fiber ID/OD
1.0mm / 1.6mm
1.0mm / 1.6mm
0.4mm / 0.5mm
0.7mm / 1.3mm
MWCO (Daltons)
50k～100k
10k～100k
50k～100k
100k～200k
Membrane area
48m2
48m2
90m2
76m2
Filtration method
Inside-out
Outside-in
Initial flux L/H, 0.1mpa, 25˚C pure water as feed
>11000
>11000
>15300
>15000
Designed water flux
40-120L/m2/h
40-80L/m2/h
End seal material
Epoxy resins
Housing material
UPVC
Connection/Pipe
Coupling connection DN50 / PVC Pipe ID. 50mm
Max. Feed pressure
0.3mpa
0.3mpa
0.3mpa
0.25mpa
Max. trans-membrane pressure
0.2mpa
0.2mpa
0.2mpa
0.15mpa
Normal trans-membrane pressure
0.02-0.15mpa
0.02-0.15mpa
0.02-0.15mpa
0.01-0.1mpa
Feed turbidity
<50ntu
Permeate turbidity
<0.1ntu
Max. working temperature
5-45˚C
PH range
3-9
2-12
1-14
2-13
Microorganism, pathogen
99.99% Removal
